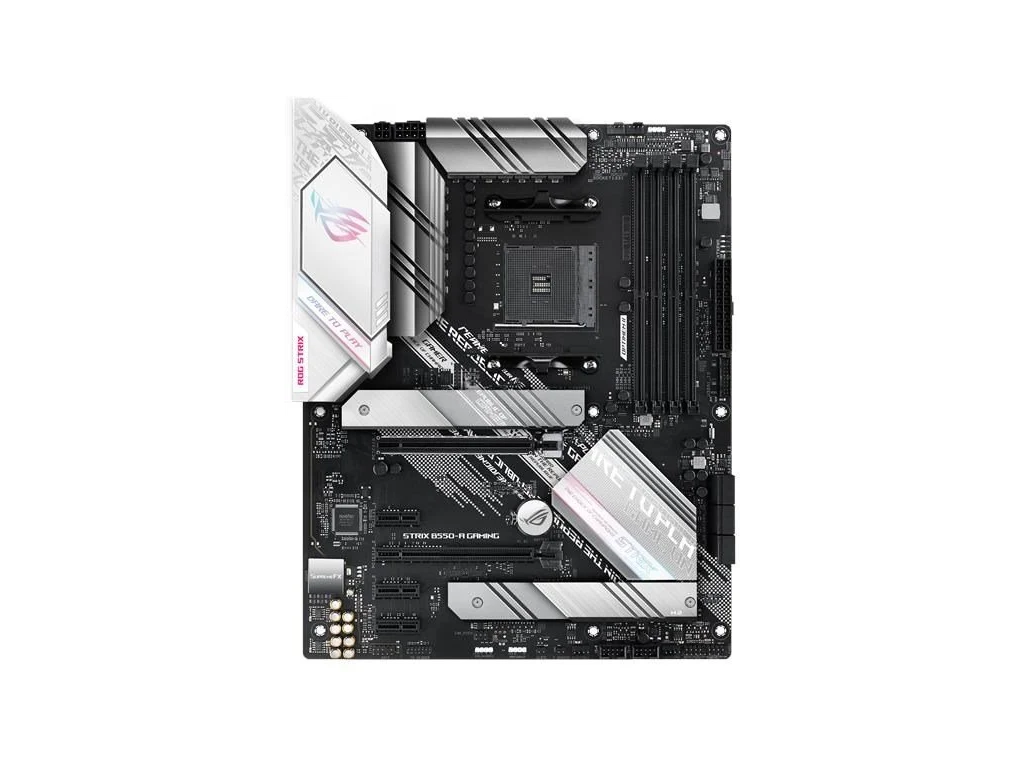

ASUS ROG Strix B550-A Gaming (90MB15J0-M0EAY0)

Detailní popis produktu

Chipset: AMD B550

Rozměrový formát: ATX Form Factor (305 mm x 244 mm)
Podpora pro procesory: AMD AM4 Socket for AMD Ryzen™ 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors
Patice procesoru: AM4

Pozice na paměti: 4x DDR4 DIMM
Podpora pro paměti:

5100(O.C)/4800(O.C.)/4600(O.C)/4400(O.C)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3600(O.C.)/3466(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory
4600(O.C)/4400(O.C)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3600(O.C.)/3466(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory

Max.velikost operační paměti: 128 GB
Podpora pro paměti typu: DDR4

Dual Channel Memory Architecture
ECC Memory (ECC mode) support varies by CPU.

Grafická karta:

Integrated Graphics Processor (na základě procesoru)

Multi GPU: AMD 2-Way CrossFireX Technology

Zvuková karta:

ROG SupremeFX8-Channel High Definition Audio CODEC S1220A

Síťová karta:

Intel® I225-V 2.5Gb Ethernet (ASUS LANGuard)

Rozšiřující sloty:

3x PCIe 3.0 x1
1x PCIe 4.0 x16 (x16 mode)
1x PCIe 3.0 x16 (x16 mode)

RAID řadič: 0, 1, 10

SATA:

6x SATA 6Gb/s

M.2:

1x M.2 Socket 1 with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode)
1x M.2 Socket 2 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)

USB:

zadní USB porty ( celkem 8 )
2x USB 3.2 Gen 2 (1 x Type-A+1 x USB Type-C®)
4x USB 3.2 Gen 1
2x USB 2.0
přední USB porty ( celkem 6 )
2x USB 3.2 Gen 1 port(s)
4x USB 2.0 port(s)

Interní porty:

1x M.2 Socket 1 with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode)
1x M.2 Socket 2 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
1x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)
1x Thunderbolt header(s)
1x CPU Fan connector(s)
1x CPU OPT Fan connector(s)
3x Chassis Fan connector(s)
1x AIO_PUMP connector
1x AAFP connector
2x Aura RGB Strip Header(s)
1x Addressable Gen 2 header(s)
2x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
6x SATA 6Gb/s connector(s)
1x 24-pin EATX Power connector(s)
1x 8-pin ATX 12V Power connector(s)
1x 4-pin ATX 12V Power connector(s)
1x System panel(s)
1x Thermal sensor connector(s)
1x Clear CMOS jumper(s)

Externí porty:

1x BIOS FlashBack™ Button(s)
2x USB 3.2 Gen 2 (1 x Type-A+1 x USB Type-C®)
1x Intel® I225-V 2.5Gb Ethernet
4x USB 3.2 Gen 1
1x DisplayPort
1x HDMI
2x USB 2.0
1x Optical S/PDIF out
5x Gold-plated audio jacks

Obsah balení:

1 x M.2 SSD screw package(s)
1x M.2 Rubber Package(s)
User´s manual
4x SATA 6Gb/s cable(s)
1x Supporting DVD
1x ROG Strix stickers
1x Cable ties pack(s)
1x Extension cable for Addressable LED
1x ROG Thank you card

BIOS: 256 Mb Flash ROM, UEFI AMI BIOS
